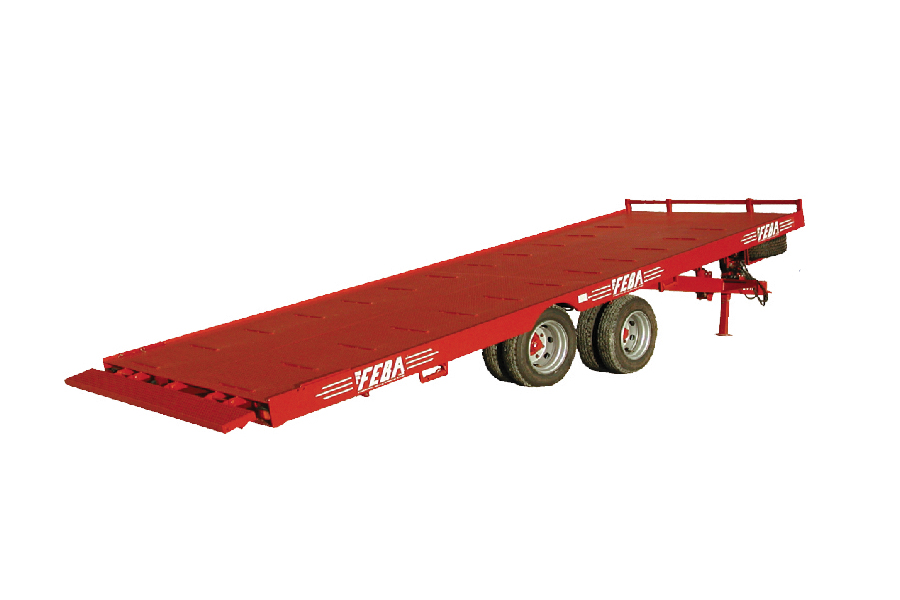

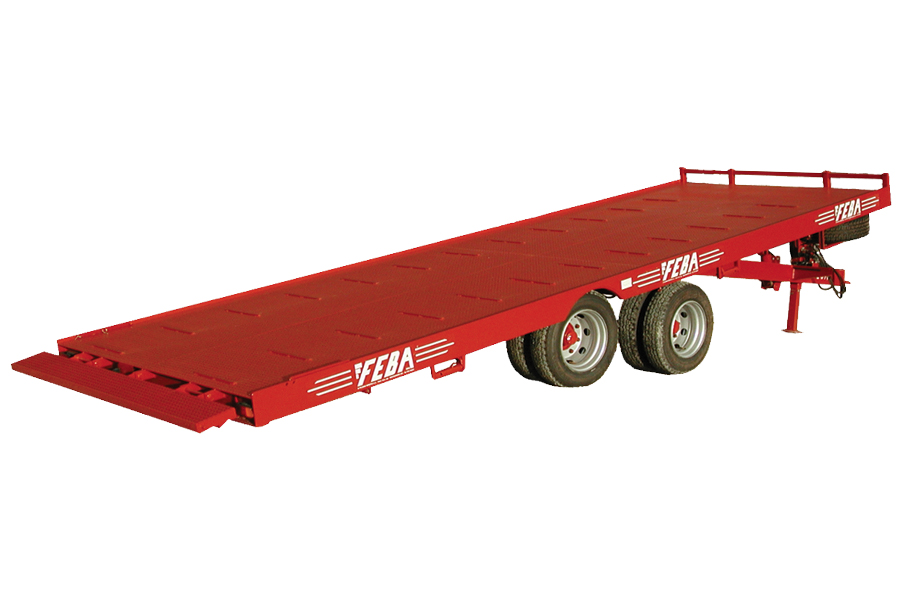

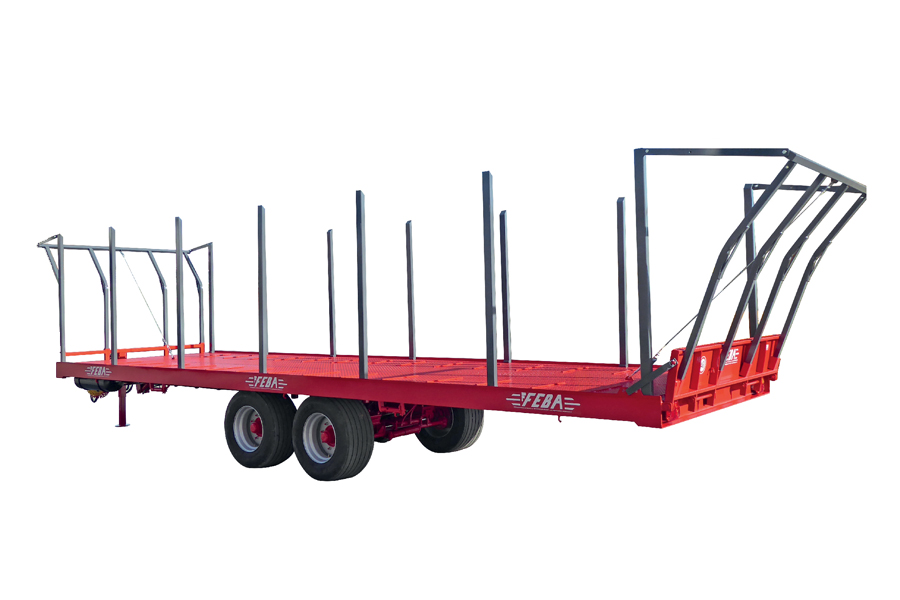

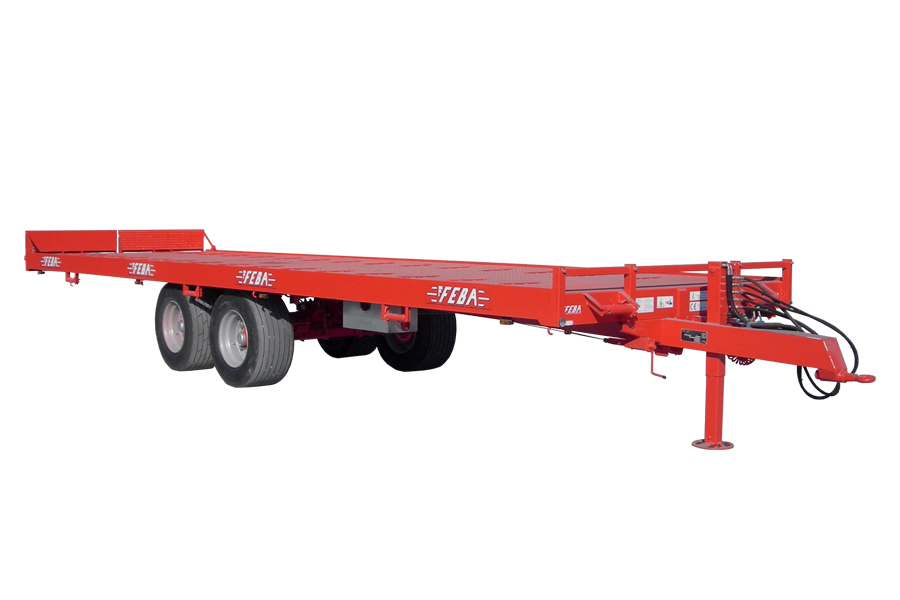

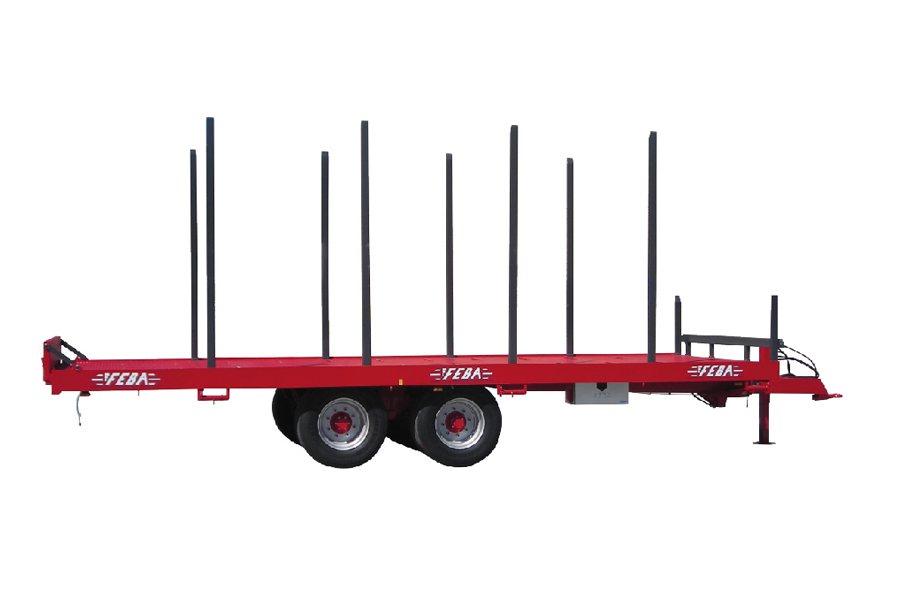

DOUBLE-AXLE TRAILER

DOUBLE-AXLE TRAILER

rear tipper homologated for transporting tracked vehicles and bales
DOUBLE-AXLE TRAILER
DOUBLE-AXLE TRAILER
DOUBLE-AXLE TRAILER
DOUBLE-AXLE TRAILER
DOUBLE-AXLE TRAILER

STANDARD EQUIPMENT

Double axle rocking beam with cantilever leaf-springs
Embossed sheet steel floor
Hydraulic tipping with quick-coupling double-effect piston
Hydraulic drawbar jack
Front and side winches
Connectors for front and rear imperial
Small tailboard
Light system and documents for on-road registration

OPTIONAL EXTRAS

Steerable rear axle (Atlas 4/5/6)
Toolbox
Front and rear imperial
Openable headboard cm. 30
Sides on all models

Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
ASSE POSTERIORE STERZANTE
RIMORCHIO DOPPIO ASSE A BILANCIERE RIBALTABILE POSTERIORE OMOLOGATO PER TRASPORTO CINGOLATI E BALLONI
TIPO DIMENSIONE PIANALE PORTATA OMOLO. COMPL. KG TARA KG RUOTE FRENI
TYPE FLOOR DIMENSION CAPACITY TARE WHEELS BRAKES
*ATLAS 7
ruota singola 		5,60x2,50 14000 3300 385/55R19.5 nv.
435/50R19.5 us. 		PNEUM.
IDRAUL.
*ATLAS 7
ruota singola 		5,60x2,50 14000 3300 385/55R19.5 nv.
435/50R19.5 us. 		PNEUM.
IDRAUL.
*ATLAS 7
ruote gemelle 		5,60x2,50 14000 3300 215/75R17.5 nv.
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 7
ruote gemelle 		5,60x2,50 14000 3300 215/75R17.5 nv.
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 7
ruota singola 		6,80x2,50 14000 3700 385/55R19.5 us
435/50R19.5 us 		PNEUM.
IDRAUL.
*ATLAS 7
ruota singola 		6,80x2,50 14000 3700 385/55R19.5 us
435/50R19.5 us 		PNEUM.
IDRAUL.
*ATLAS 7
ruota gemellate 		6,80x2,50 14000 3700 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 7
ruota gemellate 		6,80x2,50 14000 3700 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 8
ruota singola 		7,50x2,50 14000 3700 385/55R19.5 us.
435/50R19.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 8
ruota singola 		7,50x2,50 14000 3700 385/55R19.5 us
435/50R19.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 8
ruota gemellate 		7,50x2,50 14000 3700 215/75R17.5 us.
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 8
ruota gemellate 		7,50x2,50 14000 3700 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 9
ruota singola 		8,00x2,50 14000 3950 385/55R19.5 nv.
435/50R19.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 9
ruota singola 		8,00x2,50 14000 3950 385/55R19.5 nv.
435/50R19.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 9
ruota gemellate 		8,00x2,50 14000 3950 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 9
ruota gemellate 		8,00x2,50 14000 3950 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 10
ruota singola 		9,00x2,50 14000 4220 385/55R19.5 nv.
435/50R19.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 10
ruota singola 		9,00x2,50 14000 4220 385/55R19.5 nv.
435/50R19.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 10
ruote gemellate 		9,00x2,50 14000 4220 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 10
ruote gemellate 		9,00x2,50 14000 4220 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*Piedino servotimone idraulico
*Piedino servotimone idraulico
RIMORCHIO DOPPIO ASSE A BILANCIERE RIBALTABILE POSTERIORE OMOLOGATO PER TRASPORTO CINGOLATI E BALLONI
RIMORCHIO DOPPIO ASSE A BILANCIERE RIBALTABILE POSTERIORE OMOLOGATO PER TRASPORTO CINGOLATI E BALLONI
TIPO DIMENSIONE PIANALE PORTATA OMOLO. COMPL. KG TARA KG RUOTE FRENI
TYPE FLOOR DIMENSION CAPACITY TARE WHEELS BRAKES
ATLAS 4
ruota singola 		5,00x2,30 (2,40) 11000 1900 248/70R17.5 us
13.0/55-16 nv 		PNEUM.
IDRAUL.
ATLAS 4
ruota singola 		5,00x2,30 (2,40) 11000 1900 248/70R17.5 us
13.0/55-16 nv 		PNEUM.
IDRAUL.
ATLAS 4
ruota gemellate 		5,00x2,30 (2.40) 11000 1900 205/65R17.5 us
215/75R17.5 us. 		PNEUM.
IDRAUL.
ATLAS 4
ruota gemellate 		5,00x2,30 (2.40) 11000 1900 205/65R17.5 us
215/75R17.5 us. 		PNEUM.
IDRAUL.
ATLAS 5/60
ruota singola 		6,20x2,45 (2.50) 6000 2540 245/70R17.5 us
11.5/80R15.3 nv. 		PNEUM.
IDRAUL.
ATLAS 5/60
ruota singola 		6,20x2,45 (2.50) 6000 2540 245/70R17.5 us
11.5/80R15.3 nv. 		PNEUM.
IDRAUL.
ATLAS 5/60
ruota gemellate 		6,20x2,45 (2.50) 6000 2540 205/65R17.5 us
215/75R17.5 us. 		PNEUM.
IDRAUL.
ATLAS 5/60
ruota gemellate 		6,20x2,45 (2.50) 6000 2540 205/65R17.5 us
215/75R17.5 us. 		PNEUM.
IDRAUL.
ATLAS 5
ruota singola 		6,20x2,45 (2.50) 11000 2540 245/70R17.5 us
11.5/80R15.3 nv. 		PNEUM.
IDRAUL.
ATLAS 5
ruota singola 		6,20x2,45 (2.50) 11000 2540 245/70R17.5 us
11.5/80R15.3 nv. 		PNEUM.
IDRAUL.
ATLAS 5
ruota gemellate 		6,20x2,45 (2.50) 11000 2540 205/65R17.5 us
215/75R17.3 us. 		PNEUM.
IDRAUL.
ATLAS 5
ruota gemellate 		6,20x2,45 (2.50) 11000 2540 205/65R17.5 us
215/75R17.3 us. 		PNEUM.
IDRAUL.
*ATLAS 6
ruota singola 		6,50x2,45 (2,50) 11500 2900 11.5/80R15.3 nv
400/60R15.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 6
ruota singola 		6,50x2,45 (2,50) 11500 2900 11.5/80R15.3 nv
400/60R15.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 6
ruota gemellate 		6,50x2,45 (2,50) 11500 2900 2215/75R17.5 us
215/75R17.5 us. 		PNEUM.
IDRAUL.
*ATLAS 6
ruota gemellate 		6,50x2,45 (2,50) 11500 2900 2215/75R17.5 us
215/75R17.5 us. 		PNEUM.
IDRAUL.
*ATLAS 7L
ruota singola 		6,80x2,50 11800 2900 385/55R19.5 nv.
435/50R19.5 us. 		PNEUM.
IDRAUL.
*ATLAS 7L
ruota singola 		6,80x2,50 11800 2900 385/55R19.5 nv.
435/50R19.5 us. 		PNEUM.
IDRAUL.
*ATLAS 7L
ruota gemellate 		6,80x2,50 11800 2900 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*ATLAS 7L
ruota gemellate 		6,80x2,50 11800 2900 215/75R17.5 us
215/75R17.5 nv. 		PNEUM.
IDRAUL.
*Piedino servotimone idraulico
*Piedino servotimone idraulico
